SMT Feeder Panasonic KXFW1L0ZA00 72MM Depth 21mm With Sensor
Specification Data
| Brand | Panasonic |
| Part Number | KXFW1L0ZA00 |
| Description | 72MM Double With Sensor Depth 21mm |
| For | Panasonic CM/NPM SMT Machines |
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions

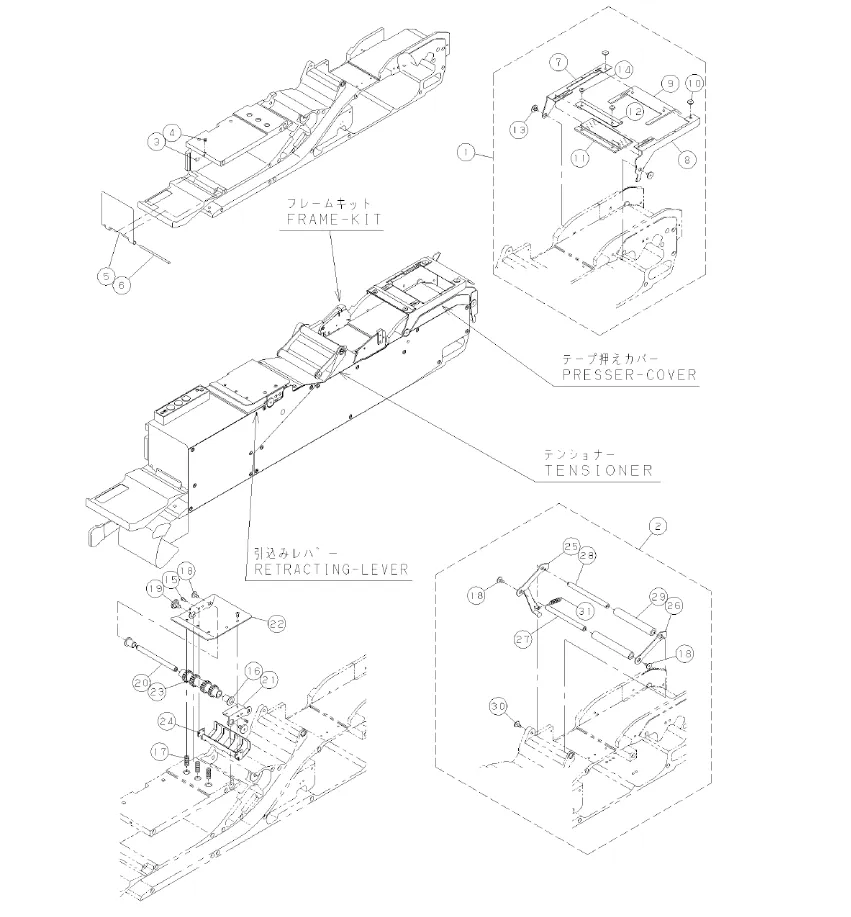

| PARTS LAYOUT | Kit No. | KXFW1L0ZA00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 72 mm; depth 21mm; Splice sens; Type A | 1-A | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | N610090964AA | PRESSER-COVER | 1 | |
| 2 | N610001300AC | TENSIONER | 1 | |
| 3 | KXF0DYAZA00 | MAGNET | NEO33 | 1 |
| 4 | XXE25C3FP | SCREW | Hexagon socket set screw Flat point M2.5X3-45H SCHP | 1 |
| 5 | N210001897AB | COVER | 1 | |
| 6 | KXFA1M9AA00 | PIN | 1 | |
| 7 | KXFA1PR5B01 | COVER | 1 | |
| 8 | N210020703AA | COVER | 1 | |
| 9 | N210006458AA | GUIDE | 1 | |
| 10 | KXFA1PQ5B00 | PIN | 2 | |
| 11 | N610072587AB | PRESSER-PLATE | 1 | |
| 12 | KXFA1PDAA00 | GUIDE | 1 | |
| 13 | N210001880AA | PIN | 2 | |
| 14 | KXF0DYAJA00 | SCREW | S020659-2001(DDA) | 2 |
| 15 | XSN25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X6-A2-70 | 6 |
| 16 | KXF0CWGAA00 | BUSH | 80F-0610 | 2 |
| 17 | N210114131AA | SPRING | 3 | |
| 18 | KXFA1KAAA00 | PIN | 3 | |
| 19 | KXFA1KRAA00 | PIN | 2 | |
| 20 | KXFA1M8AA00 | PIN | 1 | |
| 21 | KXFA1NSAA00 | LEVER | 1 | |
| 22 | KXFA1PAAA00 | LEVER | 1 | |
| 23 | N210154560AA | GEAR | 1 | |
| 24 | N210154556AB | COMB | 1 | |
| 25 | N210001887AB | LEVER | 1 | |
| 26 | N210001888AB | LEVER | 1 | |
| 27 | KXFA1M6AA00 | PIN | 1 | |
| 28 | KXFA1MAAA00 | PIN | 1 | |
| 29 | KXFA1M5AA00 | ROLLER | 2 | |
| 30 | N210044529AA | PIN | 1 | |
| 31 | KXF0DK6AA00 | SPRING | (DA 0DK6A) | 1 |

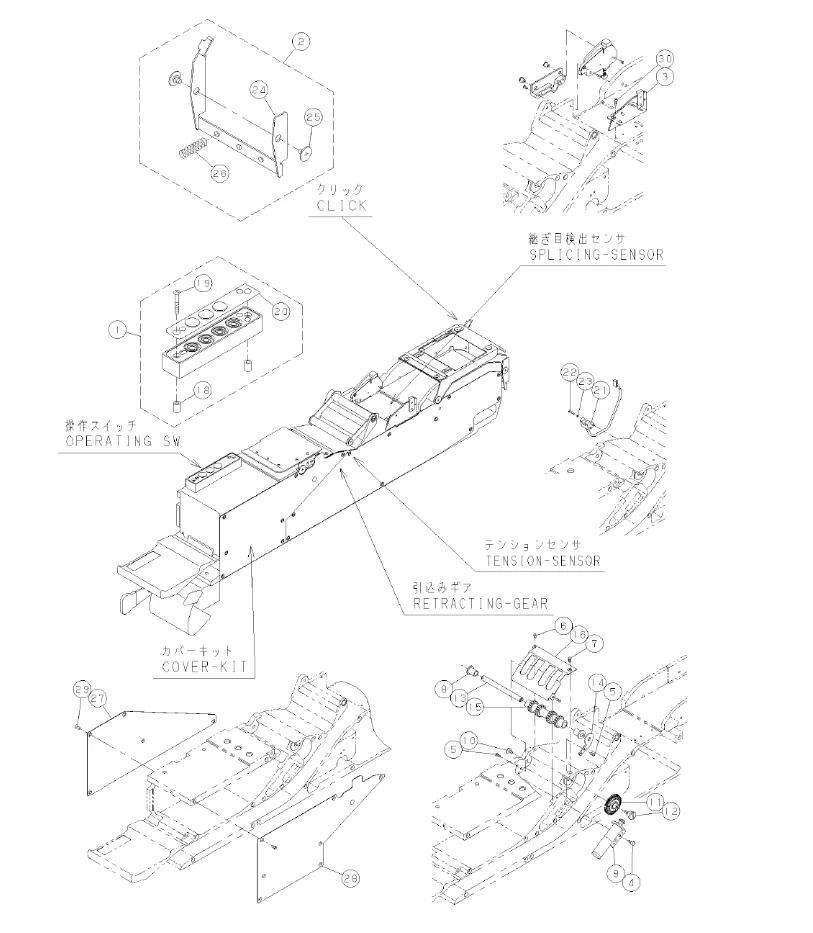

| PARTS LAYOUT | Kit No. | KXFW1L0ZA00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 72 mm; depth 21mm; Splice sens; Type A | 1-B | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | N610033141AA | OPERATING-SW | 1 | |
| 2 | N610001299AA | CLICK | 1 | |
| 3 | N610001303AA | TAPE-GUIDE(SENS) | 1 | |
| 4 | N510017337AA | BOLT | Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) | 2 |
| 5 | XSN25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X6-A2-70 | 5 |
| 6 | XSN25+4VW | SCREW | Cross recessed Pan head machine screw M2.5X4-A2-70 | 1 |
| 7 | XSN25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 1 |
| 8 | KXF0CWGAA00 | BUSH | 80F-0610 | 2 |
| 9 | N510046420AA | RETRACTING-MOTOR | LA14G-371VJ | 1 |
| 10 | KXFA1KAAA00 | PIN | 1 | |
| 11 | N210050452AA | GEAR | 1 | |
| 12 | KXFA1L0AA00 | PIN | 1 | |
| 13 | KXFA1M8AA00 | PIN | 1 | |
| 14 | KXFA1NTAA00 | BRACKET | 1 | |
| 15 | N210154560AA | GEAR | 1 | |
| 16 | N210164561AB | COMB | 1 | |
| 18 | KXF08WXAA00 | SPACER | C-2607 | 2 |
| 19 | N510018959AA | SCREW | Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent) | 2 |
| 20 | KXF0DWTLA00 | SEAL | (DA KXF0DWTLA00) | 1 |
| 21 | N510037013AA | SENSOR | PM-F24-M3 | 1 |
| 22 | N510002401AA | SCREW | SUS M2×8+TB2430 | 1 |
| 23 | N510018477AA | WASHER | Small round-plain washer 2 10H A2J (Trivalent) | 1 |
| 24 | N210001896AA | CLICK | 1 | |
| 25 | N210001880AA | PIN | 2 | |
| 26 | KXF0DYJQA00 | SPRING | 5544 | 1 |
| 27 | KXFA1N6BA00 | COVER | 1 | |
| 28 | N210001885AA | COVER | 1 | |
| 29 | XSS25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 22 |
| 30 | XSN25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X6-A2-70 | 1 |
