SMT Feeder Panasonic KXFW1KS6A00 12/16 MM With Sensor
Specification Data
| Brand | Panasonic |
| Part Number | KXFW1KS6A00 |
| Description | 12/16MM Double With Sensor |
| For | Panasonic CM/NPM SMT Machines |
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions

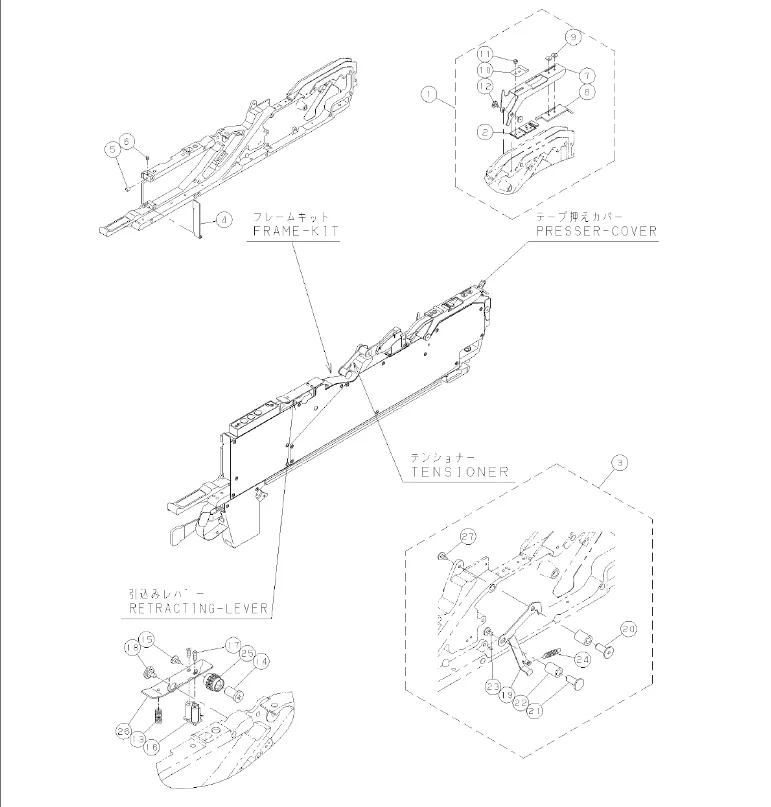

| PARTS LAYOUT | Kit No. | KXFW1KS6A00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 12,16 mm; Splice sensing; Type A | 1-A | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | N610090958AA | PRESSER-COVER | 1 | |
| 2 | N610081167AB | SLIT-PLATE | 1 | |
| 3 | N610025478AD | TENSIONER | 1 | |
| 4 | N210123198AA | COVER | 1 | |
| 5 | KXF0DYAZA00 | MAGNET | NEO33 | 1 |
| 6 | XXE25C3FP | SCREW | Hexagon socket set screw Flat point M2.5X3-45H SCHP | 1 |
| 7 | N210089630AB | COVER | 1 | |
| 8 | N210006455AA | GUIDE | 1 | |
| 9 | KXFA1PQ5B00 | PIN | 2 | |
| 10 | KXFA1NBAA00 | GUIDE | 1 | |
| 11 | KXF0DYAJA00 | SCREW | S020659-2001(DDA) | 2 |
| 12 | KXFA1LHAA00 | PIN | 2 | |
| 13 | KXF0DYUFA01 | SPRING | (DA KXF0DYUFA01) | 1 |
| 14 | KXFA1LGAA00 | PIN | 1 | |
| 15 | KXFA1KAAA00 | PIN | 1 | |
| 16 | KXFA1PSXA00 | COMB | 1 | |
| 17 | N510002400AA | SCREW | SUSB Taptite pan head 2.6 8 | 2 |
| 18 | KXFA1KRAA00 | PIN | 1 | |
| 19 | N210029789AA | LEVER | 1 | |
| 20 | KXFA1LJAA00 | PIN | 1 | |
| 21 | KXFA1LEAA00 | PIN | 1 | |
| 22 | KXFA1LDAA00 | ROLLER | 2 | |
| 23 | KXFA1KAAA00 | PIN | 1 | |
| 24 | N210064344AC | SPRING | 1 | |
| 25 | N210050454AA | GEAR | 1 | |
| 26 | KXFA1N4AA00 | LEVER | 1 | |
| 27 | N210044529AA | PIN | 1 | |

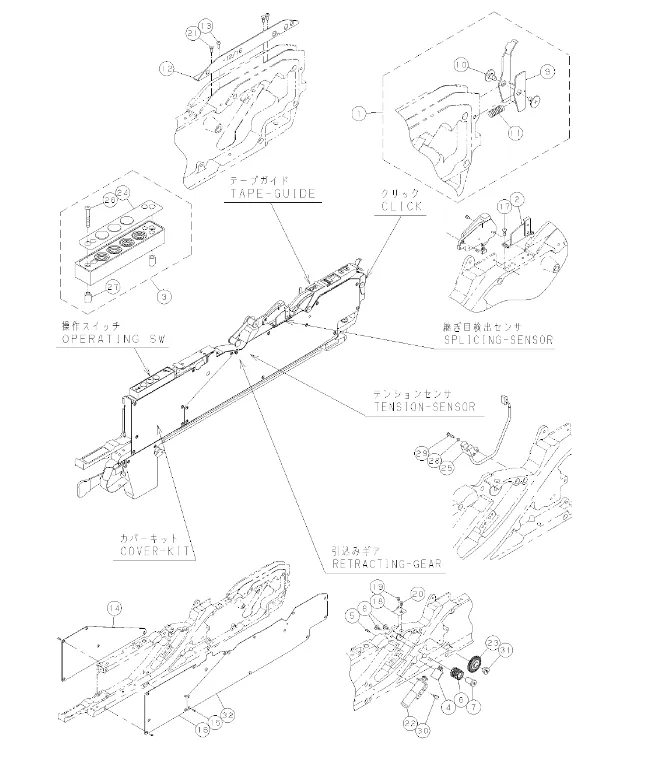

| PARTS LAYOUT | Kit No. | KXFW1KS6A00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 12,16 mm; Splice sensing; Type A | 1-B | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | KXFW1KWKA00 | CLICK | 1 | |
| 2 | KXFW1KXJA00 | TAPE-GUIDE(SENS) | 1 | |
| 3 | N610033141AA | OPERATING-SW | 1 | |
| 4 | KXFA1PSYA02 | COMB | 1 | |
| 5 | N510002400AA | SCREW | 2 | |
| 6 | N210050453AA | GEAR | SUSB Taptite pan head 2.6 | 1 |
| 7 | KXFA1LGAA00 | PIN | 1 | |
| 8 | KXFA1KAAA00 | PIN | 2 | |
| 9 | KXFA1PT7A00 | CLICK | 1 | |
| 10 | KXFA1LHAA00 | PIN | 2 | |
| 11 | KXF0DRSAA00 | SPRING | (DA 0DRSA) | 1 |
| 12 | KXFA1PT9A01 | GUIDE | 1 | |
| 13 | XSN25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X6-A2-70 | 2 |
| 14 | KXFA1N6BA00 | COVER | 1 | |
| 15 | XSS25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 22 |
| 16 | KXFA1N8BA01 | COVER | 1 | |
| 17 | XSN25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X6-A2-70 | 2 |
| 18 | KXFA1PZJB01 | PLATE | 1 | |
| 19 | XSN25+4VW | SCREW | Cross recessed Pan head machine screw M2.5X4-A2-70 | 1 |
| 20 | XSN25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 1 |
| 21 | XSN25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 2 |
| 22 | N510046420AA | RETRACTING-MOTOR | LA14G-371VJ | 1 |
| 23 | N210050452AA | GEAR | 1 | |
| 24 | KXF0DWTLA00 | SEAL | (DA KXF0DWTLA00) | 1 |
| 25 | N510037013AA | SENSOR | PM-F24-M3 | 1 |
| 26 | N510018959AA | SCREW | Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent) | 2 |
| 27 | KXF08WXAA00 | SPACER | C-2607 | 2 |
| 28 | N510018477AA | WASHER | Small round-plain washer 2 10H A2J (Trivalent) | 1 |
| 29 | N510002401AA | SCREW | SUS M2×8+TB2430 | 1 |
| 30 | N510017337AA | BOLT | Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) | 2 |
| 31 | KXFA1PS9A00 | PIN | 1 | |
| 32 | KXFA1PR1A00 | COVER | 1 | |
