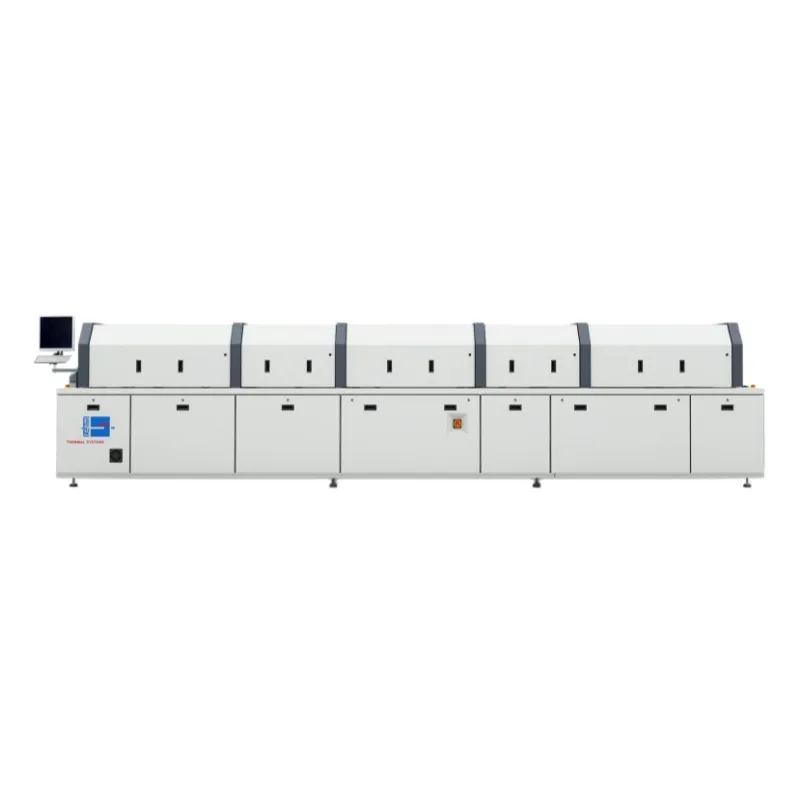

Reflow Oven Rehm VisionXC 2100

Feature

Single track transport with automatic width

adjustment and central support

› Residue management with cooler/filter units

and additional condensate separation in the

preheating area

› Transmission zone

› Internal temperature monitoring

› Automatic chain oiler

› Integrated cooling water circuit with plate

heat exchanger

› ViCON – new system software with

touch control

› ViCON App – keep an overview using the

web (30-day test version)

› ViCON remote support (TeamViewer)

› Software control of fans

PROCESS CHAMBER HEATING

Length : 2100 mm

Quantity of preheating zones : 4

Length of preheating zones : 1400 mm

Quantity of peak zones : 2

Length of peak zones : 700mm

COOLING ZONE

Length : 700mm

Quantity of cooling zones : 2

Warm up time : ca. 30 min / approx 30 min

Standby-mode : 5,5KW

Connected load : 41 KW

Length : 3590mm

ViCON App

› Mobile request of the system condition

› Alarm messages

› Notification to Rehm service personnel directly via the terminal

› Plant-specific information, e.g. machine type, serial number etc.

› Connects to a mobile superordinate line monitoring system

ViCON VisionX system software

1.User-friendly machine overview

2. System information is always mobile thanks to ViCON App
3. User administration
4. Alarm message with action buttons display
