Lead-Free Dual Wave Soldering Machine Large
Key Advantages:
1. Versatile Process Compatibility
Universal Application: Fully compatible with both lead-free and leaded soldering processes to meet diverse production requirements.
2. Precision & Resource Efficiency
Automated Accuracy: Equipped with high-precision stepper motors and rodless cylinders for automated fluxing and solder positioning.
Cost-Effective Design: Anti-oxidation solder nozzle technology significantly reduces material waste and lowers operational costs.
3. Superior Thermal Performance
Closed-Loop Control: Real-time feedback ensures precise synchronization of PCB preheating and soldering durations.
Uniform Heating: Optimized micro-hot-air circulation with independent zone control delivers superior thermal stability and rapid, consistent heating across the board.
4. Simplified Maintenance & Automation

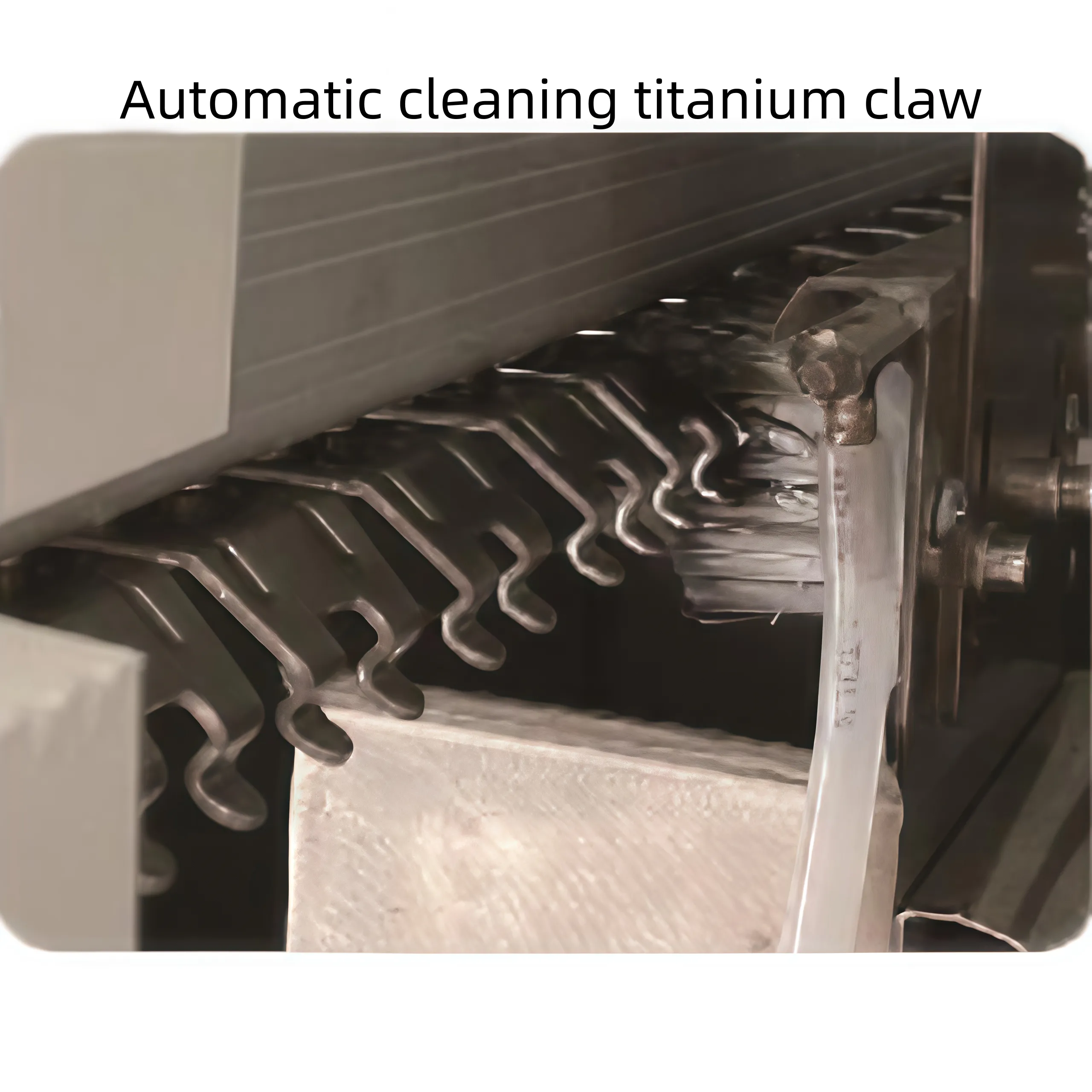

Automated Maintenance: Features an automatic titanium finger cleaning system, reducing the need for manual intervention.
User-Friendly Design: Motorized solder pot assembly facilitates easy access and maintenance, effectively increasing production uptime and reducing labor costs.
| Parameter | MJ-S32535DZ | MJ-S32535DZ |
|---|---|---|

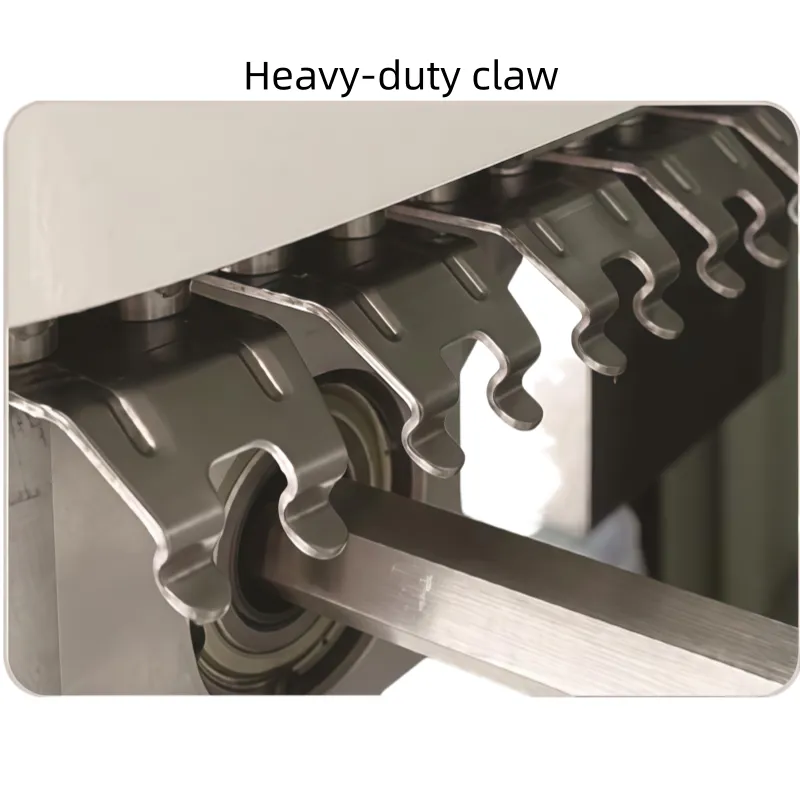

| Configuration | Computer Control + PLC, 3-Stage Hot Air Heating, Dual Wave, Heavy-duty Finger, Auto Flux Dispenser, Motorized Solder Pot, Auto Titanium Finger Cleaner, Stepper Motor Flux Spray | Computer Control + PLC, 4-Stage Hot Air Heating, Dual Wave, Heavy-duty Finger, Auto Flux Dispenser, Motorized Solder Pot, Auto Titanium Finger Cleaner, Stepper Motor Flux Spray |
| Wave Count | 2 Waves | 2 Waves |
| Max PCB Width | 350mm | 350mm |
| Solder Capacity | 380KG | 380KG |
| Preheat Length | 1800mm | 2000mm (4 Zones, Independent Control, Hot Air Circulation) |
| Wave Height | 12mm | 12mm |
| PCB Component Lead Length | 10mm | 10mm |
| PCB Conveyor Height | 750 ± 20mm | 750 ± 20mm |
| Total Power | 19KW | 22KW |
| Operating Power | 7–9KW | 7–10KW |
| Machine Dimensions (L*W*H) | 3200*1350*1600mm | 3600*1400*1650mm |
| Overall Dimensions (L*W*H) | 4000*1350*1700mm | 4500*1400*1750mm |
| PCB Conveyor Speed | 0–2m/min | 0–1.2m/min |
| Preheat Temperature | Ambient - 180°C | Ambient - 180°C |
| Heating Method | Hot Air | Hot Air |
| Cooling Method | Axial Fan | Axial Fan |
| Solder Temperature | Ambient - 300°C | Ambient - 300°C |
| Conveying Direction | Left to Right | Left to Right |
| Temp. Control Mode | PID + SSR | PID + SSR |
| Flux Capacity | Max 5.2L | Max 5.2L |
| Flux Spray Method | Stepper Motor + ST-6 | Stepper Motor + ST-6 |
| Power Supply | 3-Phase 5-Wire 380V 50Hz | 3-Phase 5-Wire 380V 50Hz |
| Air Supply | 4–7kg/cm² 12.5L/min | 4–7kg/cm² 12.5L/min |
| Weight | 1500KG | Approx. 1800KG |
| Top Side Component Height Limit | 100mm | 100mm |
| Bottom Side Component Lead Limit | 10mm | 10mm |
